Annilte polyurethane belt High-Performance PU Transmission Round Belt

Annilte polyurethane belt High-Performance PU Transmission Round Belt Featured Image
  • Annilte polyurethane belt High-Performance PU Transmission Round Belt
  • Annilte polyurethane belt High-Performance PU Transmission Round Belt
  • Annilte polyurethane belt High-Performance PU Transmission Round Belt
  • Annilte polyurethane belt High-Performance PU Transmission Round Belt
  • Annilte polyurethane belt High-Performance PU Transmission Round Belt
Annilte Green Polyurethane Conveyor Belts Diameter 2/3/4/5/6/7/8/9/10/12/15/18mm PU Round Drive Belt Meltable Cord
Color
Green
Compatible Devices
Conveyer System
Size
6mm Round Belt*1
Material
Urethane , Polyurethane
  • :
    • Send email to us WhatsApp

    Product Detail

    Product Tags

    Diameter
    Standard specification & Customized
    Surface
    Rough & Smooth
    Material
    PU
    Color
    Green,  green, black,  dark green, sky blue, orange, yellow, transparent, or Customized.
    Pattern
    Standard specification & customized

    Diameter: 1.5mm 2mm 2.5mm 3mm 3.5mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm 15mm 18mm

    Shore Hardness：85 – 95

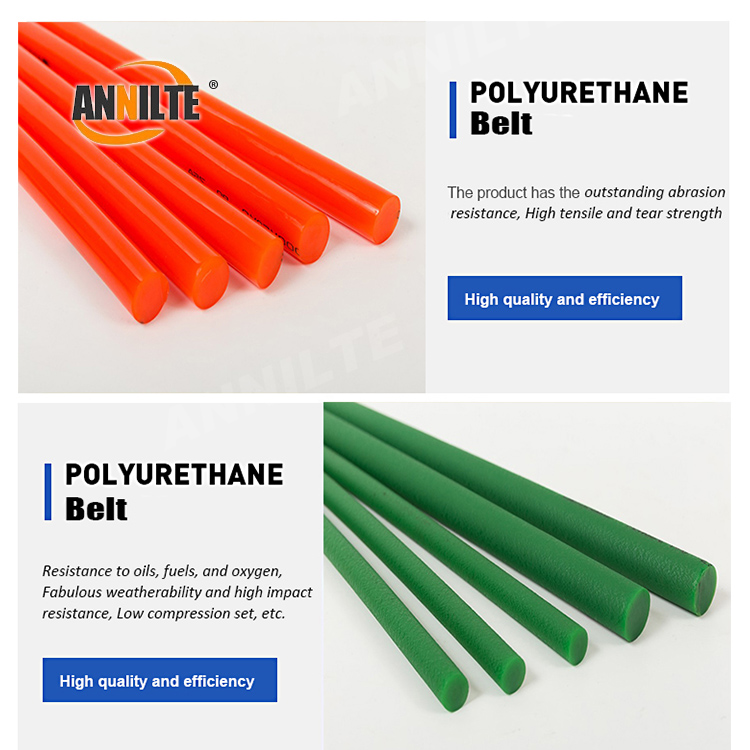

    pu_round_belt_11

    Specifaction

    Model
    Dia
    Mini radius of gyration
    stretch rate
    Max tensile
    Length
    mm
    in
    mm
    KG
    Ibs
    m
    Φ2
    2
    0.75
    20
    1.5~3%
    0.3
    0.7
    400
    Φ3
    3
    1.00
    25
    1.5~3%
    0.7
    1.6
    400
    Φ4
    4
    1.25
    35
    1.5~3%
    1.2
    2.7
    200
    Φ5
    5
    1.50
    40
    1.5~3%
    2.0
    4.4
    200
    Φ6
    6
    1.75
    50
    1.5~3%
    3.2
    7.1
    200
    Φ7
    7
    2.00
    55
    1.5~3%
    4.1
    9.1
    100
    Φ8
    8
    2.25
    65
    1.5~3%
    5.0
    11.1
    100
    Φ9
    9
    2.50
    75
    1.5~3%
    6.8
    15.1
    50
    Φ10
    10
    3.00
    75
    1.5~3%
    7.7
    17.1
    50
    Φ12
    12
    4.00
    100
    1.5~3%
    12.2
    27.1
    30
    Φ15
    15
    4.75
    120
    1.5~3%
    17.7
    39.3
    30
    Φ18
    18
    5.75
    145
    1.5~3%
    25.4
    56.4
    30
    Φ20
    20
    6.25
    160
    1.5~3%
    31.3
    69.6
    30

    Features:

    wear resistance, high temperature resistance, acid and alkali resistance, corrosion resistance, anti-aging;
    anti-tension, impact resistance, oil resistance, chemical resistance,high tensile strength

    Use:

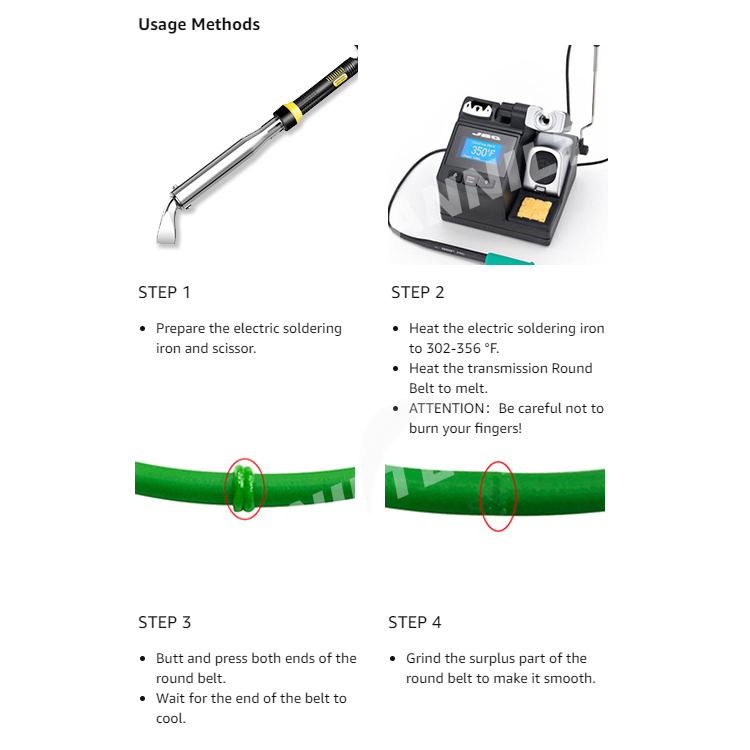

    The method of jointing the ends of the belt:
    Step1: To be heated with an alcohol lamp until it is hot enough to melt the end of the belting.
    Step2: Join the ends together until they cool.
    Step3: Trim off the extra material around the joint until the joint is the same diameter as the belt.

    Advantage

    * Easy to connect
    * Easy installation
    * High wear resistance
    * Long service life
    * plasticizer-free
    * chemical resistance
