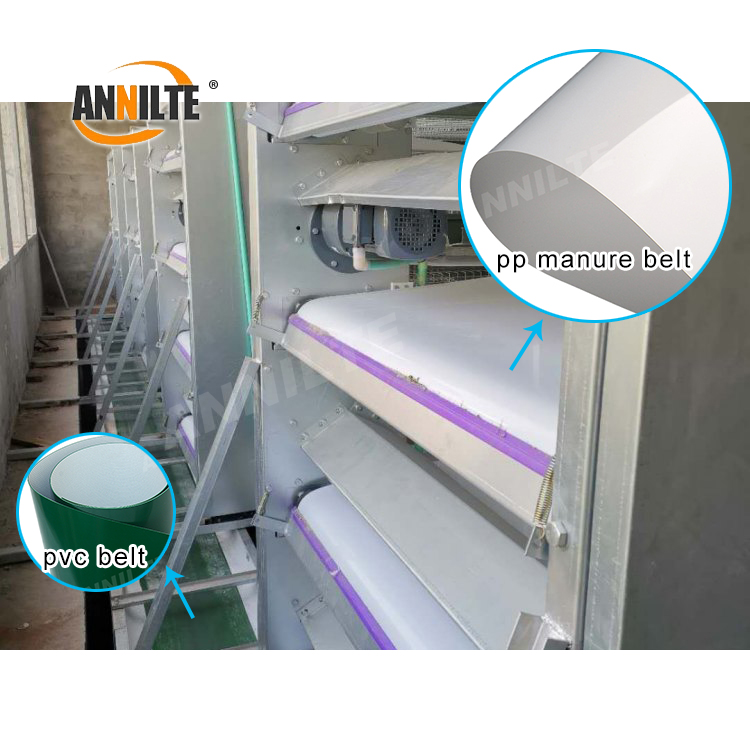

A chicken manure conveyor belt is a type of belt used in mechanical equipment that is used to transport chicken manure from one place to another. The design and manufacture of this type of conveyor belt requires consideration of a number of factors, including its size, material, support structure, drive unit, rollers, and side and guide equipment. The principle of operation is roughly as follows: the manure bearing belt is installed underneath each layer of chicken cages, and the feces excreted by the chickens automatically falls into the belt underneath the cages and accumulates on it. When the system starts, the motor and reducer drive the active roller of each layer through the chain, and the friction force is generated under the extrusion of the passive roller and the active roller, which drives the manure bearing belt to move along the length of the cage group, and transports the chicken droppings to one end, and then the scraper set at the end scrapes off the manure board, so as to realize the manure clearing.
During transportation and storage, the chicken manure conveyor belt should be kept clean, avoid direct sunlight, and not be in contact with acid, alkali, oil and other substances, while the distance between the chicken manure conveyor belt and the heating device should be more than one meter. When the chicken manure conveyor belt needs to be stored, the relative humidity of the storage environment should be kept between 50%~80%, and the storage temperature should be kept between 18~40℃. If the chicken manure conveyor belt is in idle state, it should be rolled and placed in a cool place, not folded, and turned regularly.
The service life of a chicken manure conveyor belt can vary from a few months to 2 years, depending on its installation, use and maintenance. Improper installation or use may result in the belt shrinking into a ball and becoming unusable. Therefore, proper installation and regular maintenance are very important. For example, if the automatic manure cleaner has a situation where the direction of the manure clearing belt runs out of direction, it can be corrected by adjusting the bolt on the tensioning bar or moving the position of the manure clearing belt. When the manure belt is extended and loose after a long time of use, a section should be cut off and re-welded.
In addition, the specific specifications of the chicken manure conveyor belt can be customized according to the need, common specifications such as width 66~70cm, thickness 0.7~1.0mm. its main raw material is pp material, this material is cheaper, the overall cost of the chicken manure conveyor belt is lower, with the right equipment, it is also more convenient to use.
Annilte is a manufacturer with 15 years of experience in China and an enterprise ISO quality certification. We are also an international SGS-certified gold product manufacturer.
We customize many kinds of belts .We have our own brand “ANNILTE”
If you have any questions about the conveyor belts, please contact us!
