In the livestock breeding industry, the manure belt is mainly used in the automatic livestock breeding equipment for conveying livestock manure. The existing anti-deflection device is mostly in the form of a guide plate, with convex edges on both sides of the manure belt, and guide grooves are set in the guide plate to match the convex edges, and the convex edges slide in the guide grooves to realize the guidance of the manure belt. At the same time, the length of the guiding plate is long, and the friction between it and the guiding belt is large, and the wear and tear is fast, so frequent replacement affects the actual use effect.
Avoiding the shortcomings of the prior art, the manure belt anti-running device is provided, so as to effectively solve the shortcomings existing in the prior art.

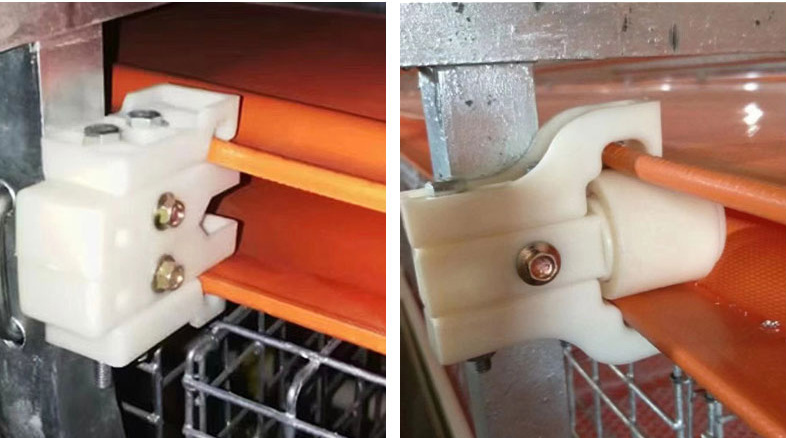

The technical solution adopted by the utility model is: anti-deflection device of manure cleaning belt, including E-shaped bracket, said E-shaped bracket includes a vertical section, a first horizontal section set in the upper part of the vertical section, a second horizontal section set in the middle of the vertical section and a third horizontal section set in the lower part of the vertical section 1, said second horizontal section is cylindrical and its rotatable sleeve is connected, said lower end of the first horizontal section can be universal movable set There is a ball, and there is a gap between the lower edge of the ball and the upper edge of the sleeve to match the thickness of the scavenging belt, and there is a ball movable at the upper end of the third horizontal section, and there is a gap between the upper edge of the ball and the lower edge of the sleeve to match the thickness of the scavenging belt, and there is a slot on the side of the ball for the convex edge of the scavenging belt to pass through.
