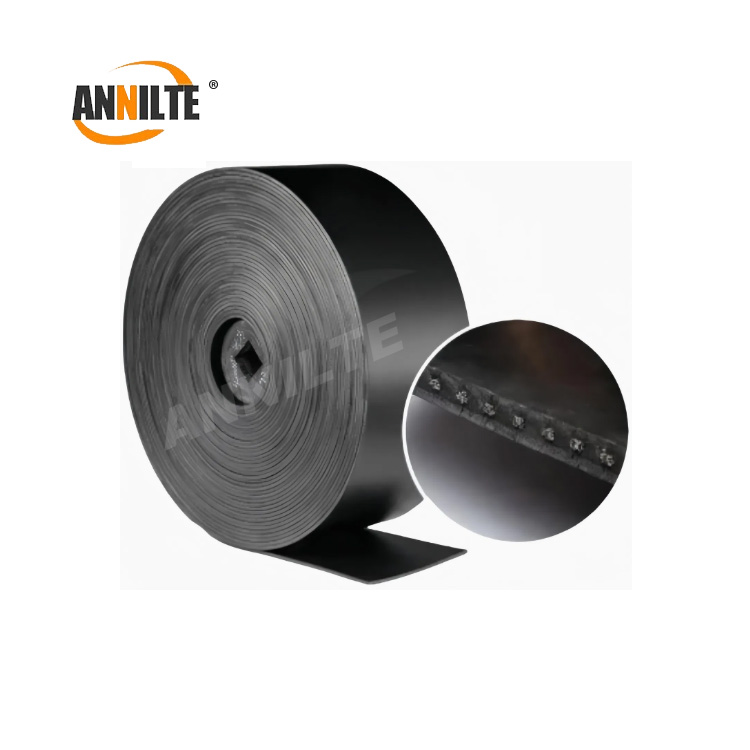

Steel cord rubber conveyor belt
| Model NO. | AN-ST1600 | Inside Material | Steel Cord |
| Feature | Oil-Resistant, Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant, High Temperature Resistant | Tensile Strength | Strong |
| Color | Black | Dimension(L*W*H) | 1-6m |
| Max Diameter of Cord | 3.0mm-15.0mm | Pitch of Cord | 10mm-21mm |
| Application | Coal, Mining, Cement Plant, Power Plant | OEM | OEM Allowed |
| Weight | 18kg/M-67kg/M | Width | 200-4000mm |
| Warranty | 13 Months | Delivery Time | 10-25 Days |
| Cover Rubber Grade | 10-25 MPa | Edge | Moulded Edge |
| Transport Package | According to Customers | Production Capacity | 100000 Meter Per Month |
| HS Code | 4010110000 |
Main Features
High strength: the tensile strength of steel wire core rubber conveyor belt is large, which can withstand large loads and is suitable for long distance and large capacity material transportation.
Good impact resistance: due to the support of the internal steel wire rope, the conveyor belt has good impact resistance, and can adapt to a variety of complex conveying environment.
Long service life: the elongation of steel wire core rubber conveyor belt is small, and the steel wire rope is firmly combined with rubber, so the service life is relatively long.
Good groove formation: the conveyor belt body is soft and easy to form grooves, which is conducive to material conveying and stacking.
Good resistance to bending and flexing: it can adapt to various bending and flexing conditions to ensure the stability and reliability of the conveying process.
Applications
Steel cord conveyor belt is widely used in coal, mine, port, metallurgy, electric power, chemical industry, and other fields. It is suitable for conveying massive, granular, and powder materials in high-strength, long-distance, and large-volume situations.
R&D Team
Annilte has a research and development team consisting of 35 technicians. With strong technical research and development capabilities, we have provided conveyor belt customization services for 1780 industry segments, and gained recognition and affirmation from 20,000+ customers. With mature R&D and customization experience, we can meet the customization needs of different scenarios in various industries.
Production Strength
Annilte has 16 fully automated production lines imported from Germany in its integrated workshop, and 2 additional emergency backup production lines. The company ensures that the safety stock of all kinds of raw materials is not less than 400,000 square meters, and once the customer submits an emergency order, we will ship the product within 24 hours to respond to the customer's needs efficiently.
Annilte is a conveyor belt manufacturer with 15 years of experience in China and an enterprise ISO quality certification. We are also an international SGS-certified gold product manufacturer.
We offer a wide range of customizable belt solutions under our own brand, "ANNILTE."
