Wholesale Dealers of Nylon Base High Friction High Speed Flat Transmission Belt for Agricultural Machine

Nylon polyamide power drive belt structure of NBR + polyamide + NBR three layers.
It has the characteristics of light weight, high strength, small corrosion, oil resistance, wear resistance, energy saving and so on.
Belt color can be customized, the general color is green/yellow, light green/yellow, green/black, light green/green, etc.

Application	Spinning,textile industry
Surface structure	wear resistance
Temperature	-20 ° C to 80° C
Feature	anti-static

Send email to us WhatsApp Send Inquiry

Product Detail

Product Tags

Our business has been focusing on brand strategy. Customers’ pleasure is our best advertising. We also offer OEM company for Wholesale Dealers of Nylon Base High Friction High Speed Flat Transmission Belt for Agricultural Machine, Thanks for taking your worthwhile time to go to us and stay up for have a nice cooperation along with you.
Our business has been focusing on brand strategy. Customers’ pleasure is our best advertising. We also offer OEM company for China Flat Belt and Transmission Belt, The quality of our items is equal to OEM’s quality, because our core parts are the same with OEM supplier. The above solutions have passed qualified certification, and we not only can produce OEM-standard products and solutions but we also accept Customized Products order.
Nylon sheet base band is a very widely used in the industrial belt of a plane transmission belt category, nylon sheet base band is nylon sheet as the tension layer and the surface is covered with rubber, cowhide, fiber cloth plane transmission belt (also known as flat belt), has: strong tension, flexural resistance, high efficiency, low noise, fatigue resistance, good wear resistance, long service life and other advantages. Application: Suitable for compact transmission mechanism, high speed and high speed ratio. Such as: cigarette, cigarette machine, papermaking, printing, spinning machinery, HVAC equipment, metal equipment, automatic selling equipment and military industry. After adding anti-static properties, it is also used in the electronics industry substrate line, SMT equipment, circuit board transportation, etc.

Product name	Yellow and green substrate
Product type	Sheet base band/seamless ring base band/rubber nylon base band/cowhide nylon base band
Substrate	surface covered with rubber, cowhide, fiber cloth; Divided into rubber nylon sheet base band and cowhide nylon sheet base band.
Product features	wear-resisting, winding resistance, strong tension, long service life.
Product material	nylon/rubber/cowhide/industrial fiber cloth
Width range	0mm-500mm(size can be special processing according to customer requirements)
Length range	arbitrary length according to customer requirements
Product type	yellow-green tablet base band
Product color	yellow, green
Connection mode	Seamless tape

Product Description

High efficiency double-sided drive belt, it is suitable for high-speed tangential transmission and power transmission in the textile industry, such as rotor spinning machine, twisting machine, drawing machine, fancy twisting machine, also often do carding machine, roving machine, drawing machine, drawing machine, paper mill and other industries of equipment power belt.

TYPE	THicness	kind of drive	Min. wheel diameter	1% ductility	Tension strength	Operating temp.	Characteristics
TYPE	(mm)	kind of drive	(mm)	(N/mm）	(N/mm)	(℃)	Characteristics
A_001C	1.4	Double-sided transmission	20	2	80	-20~ +100	Anti-static
A_002C	1.5	Double-sided transmission	35	3.5	140	-20~ +100	Anti-static
A_003C	1.7	Double-sided transmission	50	5	200	-20~ +100	Anti-static
A_004C	2	Double-sided transmission	75	7.5	300	-20~ +100	Anti-static
A_005C	2.1	Double-sided transmission	50	5	200	-20~ +100	Anti-static
A_006C	2.3	Double-sided transmission	75	7.5	300	-20~ +100	Anti-static
A_007C	3.2	Double-sided transmission	75	7.5	300	-20~ +100	Anti-static
A_008C	2.4	Double-sided transmission	85	8.5	340	-20~ +100	Anti-static
A_009C	2.4	Double-sided transmission	100	10	400	-20~ +100	Anti-static
A_010C	2.6	Double-sided transmission	100	10	400	-20~ +100	Anti-static
A_011C	3	Double-sided transmission	100	10	400	-20~ +100	Anti-static
A_012C	3.4	Double-sided transmission	100	10	400	-20~ +100	Anti-static
A_013C	2.6	Double-sided transmission	115	11.5	460	-20~ +100	Anti-static
A_014C	2.8	Double-sided transmission	115	11.5	460	-20~ +100	Anti-static
A_015C	3	Double-sided transmission	115	11.5	460	-20~ +100	Anti-static
A_016C	2.6	Double-sided transmission	125	12.5	500	-20~ +100	Anti-static
A_017C	2.8	Double-sided transmission	125	12.5	500	-20~ +100	Anti-static
A_018C	3	Double-sided transmission	125	12.5	500	-20~ +100	Anti-static
A_019C	3.1	Double-sided transmission	150	15	600	-20~ +100	Anti-static
A_020C	3.3	Double-sided transmission	150	15	600	-20~ +100	Anti-static
A_021C	3.9	Double-sided transmission	150	15	600	-20~ +100	Anti-static
A_022C	3.2	Double-sided transmission	175	17.5	700	-20~ +100	Anti-static
A_023C	3.5	Double-sided transmission	175	17.5	700	-20~ +100	Anti-static
A_024C	3.8	Double-sided transmission	175	17.5	700	-20~ +100	Anti-static
A_025C	3.6	Double-sided transmission	200	20	800	-20~ +100	Anti-static

Contact us to get more detail

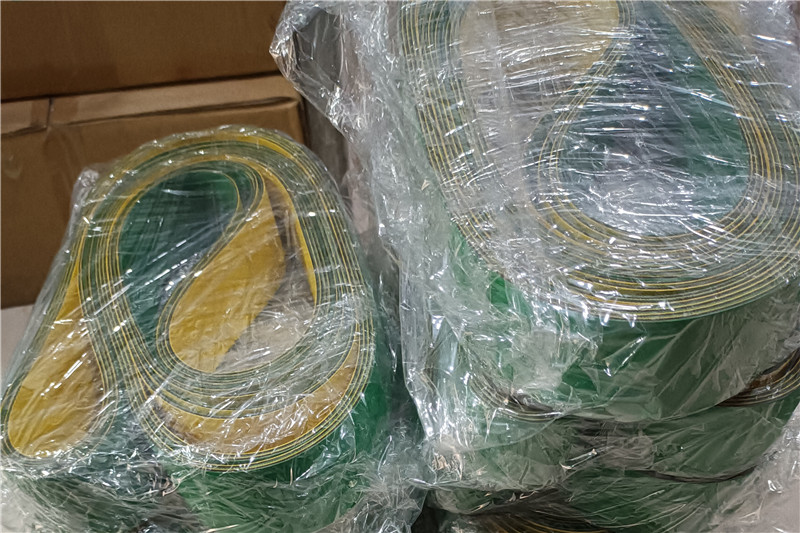

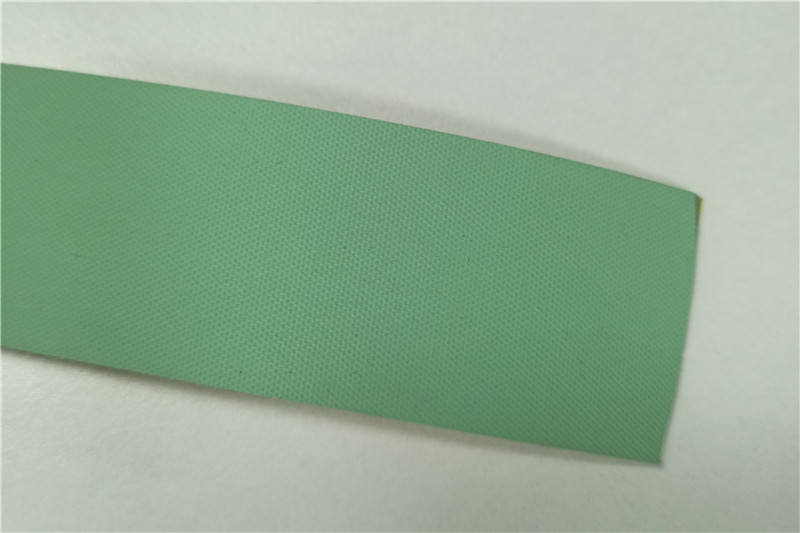

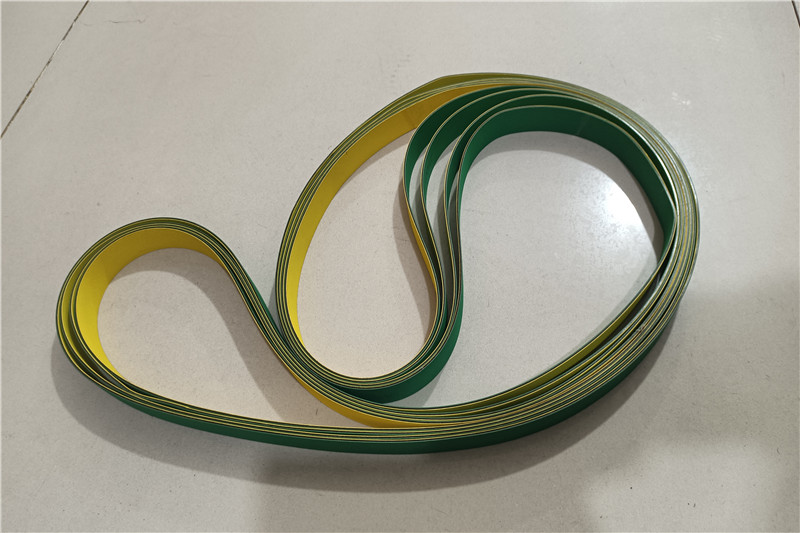

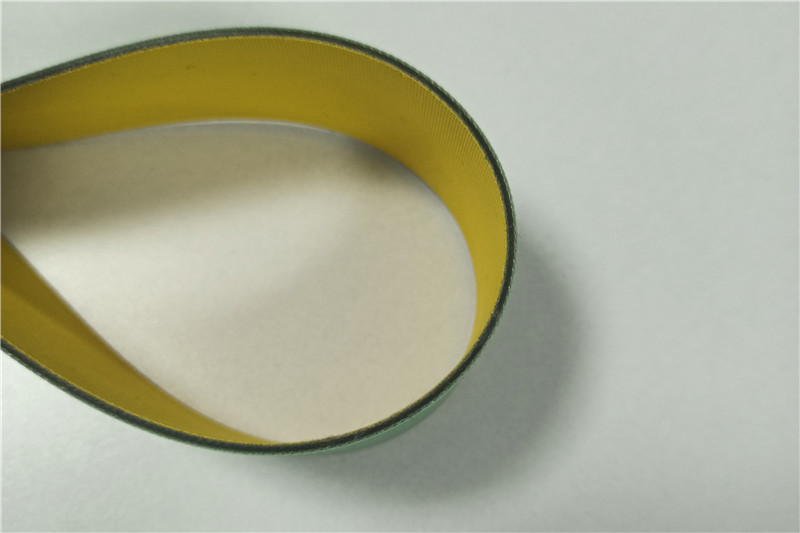

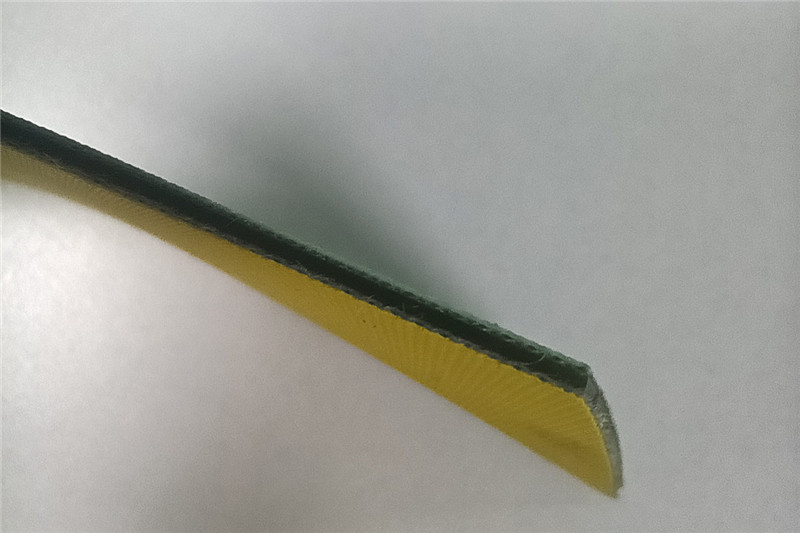

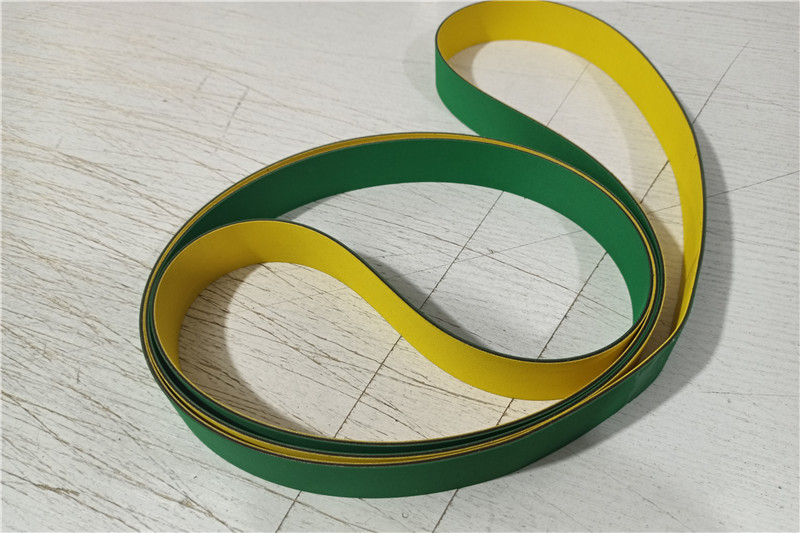

Details pictures

detail
detail
detail
detail
detail
detail Our business has been focusing on brand strategy. Customers’ pleasure is our best advertising. We also offer OEM company for Wholesale Dealers of Nylon Base High Friction High Speed Flat Transmission Belt for Agricultural Machine, Thanks for taking your worthwhile time to go to us and stay up for have a nice cooperation along with you.
Wholesale Dealers of China Flat Belt and Transmission Belt, The quality of our items is equal to OEM’s quality, because our core parts are the same with OEM supplier. The above solutions have passed qualified certification, and we not only can produce OEM-standard products and solutions but we also accept Customized Products order.
